FT Series – Pneumatic Tappers

FT Series - Tappers : FT-13Z-1 N
Clear selection
  • Are you a distributor or would like to become one? Apply and get exclusive pricing benefits.

    Web Price

    Reset options

FUJI AIR TOOLS has a some highly specialized variety of tappers. The range goes from 1/4″ to 5/16″. This tools can include either a drill chuck or a tapping chuck. On some of the models both options are available, you can select your preference and order accordingly. The tapping capacity will vary from steel to aluminum so please see the difference in the charts below. FUJI’s tappers are easy to use tools that have a throttle and a reversing trigger to provide smooth operation.

FT Series - Tappers : FT-13Z-1 N
Clear selection
  • Are you a distributor or would like to become one? Apply and get exclusive pricing benefits.

    Web Price

    Reset options

Warranty Protection

Repair Service Available

OEM
Spare Parts

Pneumatic Tappers Comparison

Model

FT-6P-1 N

FT-6BX-1 8

FT-6BX-1 T N

FT-8PX-1

FT-13Z-1 N

Part Number

5412053491

5412072335

5412053488

5412053492

5412102787

Version

Drill chuck

Drill chuck

Tapping chuck

Tapping chuck

Tapping chuck

Drilling / Tapping Capacity (Steel)

8mm / 5/16"

8 mm / 5/16"

8mm / 5/16"

10mm / 3/8"

13 mm / 1/2"

Free Speed (RPM's)

1,000

2,000

2,000

450

400

Power

300 W

300 W

300 W

300 W

600 W

Type and size of spindle

Jacobs Taper 1

Jacobs Taper 1

Jacobs Taper 1

M.T. 1

Jacobs Taper 6

Weight

3.97 lbs / 1.8 kg

2.87 lbs / 1.3 kg

2.87 lbs / 1.3 kg

4.41 lbs / 2 kg

8.8 lbs / 4 kg

Sound Pressure db(A)

71 db(A)

71 db(A)

71 db(A)

82 db(A)

89 db(A)

FUJI Air Tools Tappers Features

heavy-duty

Industrial Heavy-Duty

Aluminum housing makes it durable and lightweight.

low vibration

Low Vibration

Expertly built to reduce vibration in the harshest operation.

Cost effective

Cost Effective

More durability means greater ROI compared to lower-end tools.

Reversing

A. Twin lever type-one lever for forward rotation (with throttle actuation) and one lever for reverse rotation (with throttle actuation).

B. See-saw type lever for throttle actuation and reversing.

C. Push/Pull type-forward rotation when the tool is pushed into the work-piece, reverse rotation when the tool is pulled away from the work-piece.

Air Regulator

A four click stop regulator is built in and the operator can regulate air supply for torque adjustment.

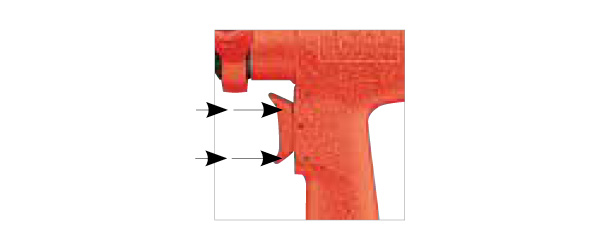

Two-Stage Throttling

This mechanism allows a "slow start" to ensure tap is correctly aligned prior to working full-speed.

Dead Handle

The dead handle is used to reduce the effect of "snatching" when tapping a through hole. It is also used when tapping "high torque" threads.

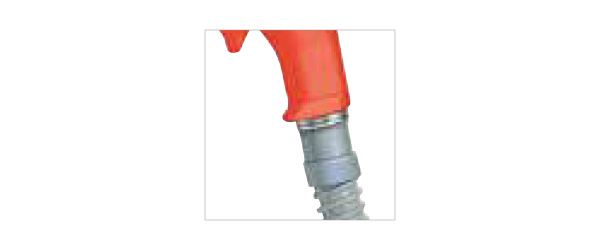

Rear Exhaust with Air Exhaust Hose

Connecting an air exhaust hose provides improved operator comfort by directing the exhaust air away and reducing the noise level.

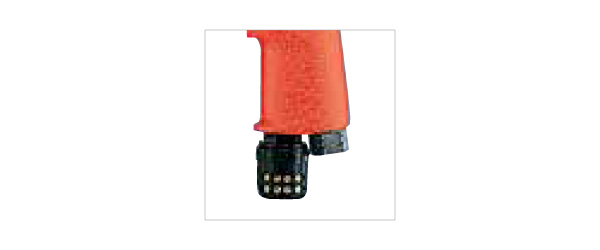

Rear Exhaust with Built-in Muffler

The noise level is minimized via the muffler built into the exhaust cover.

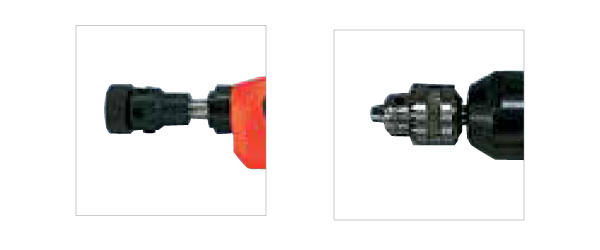

Universal Tapping Chuck

The universal tapping chuck provides optimal grip of the tap during the tapping operation. And the drill chuck can be used for tapping too.
