FRD-5S Series – Inline Drills

The FRD-5S Series is FUJI’s smallest inline drill. At 1/4″ in drilling capacity and only 1.32 lbs / 0.6 kg it is a great option for small applications. Please select to the right the model number of your preference or compare below among all models in the series.

Warranty Protection

Repair Service Available

OEM
Spare Parts

FRD-5S Series - Inline Drills Models Comparison

Model

FRD-5S-1

FRD-5S-1F

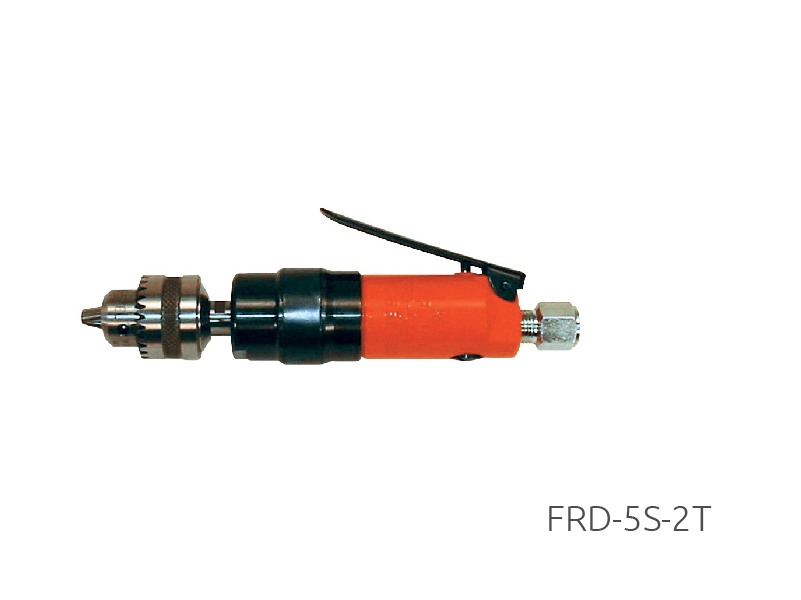

FRD-5S-2T

Part Number

5412053306

5412072178

5412053311

Drilling Capacity

6.5mm / 1/4"

6.5mm / 1/4"

5 mm / 3/16"

Speed (RPM's)

3,200

3,200

24,000

Power

180 W

180 W

180 W

Weight

1.32 lbs / 0.6 kg

1.32 lbs / 0.6 kg

1.1 lbs / 0.5 kg

Spindle or Chuck type

3/8"-24UNF

3/8"-24UNF

Jacobs Taper 1

Sound Pressure db(A)

85.1 db(A)

85.1 db(A)

85.1 db(A)
