FRD-23R Series – Heavy Duty Reversible Drills

FRD-23R Series - Heavy Duty Reversible Drills : FRD-23R-21
Clear selection

FUJI’s FRD-23R Series is a very powerful heavy-duty drill. This pneumatic drill has a drilling capacity of 7/8″. Several features are available depending on the model, please click on the models to the right or scroll down for model comparison. This FUJI tool is designed to run continuously in heavy duty industrial and harsh environments.

FRD-23R Series - Heavy Duty Reversible Drills : FRD-23R-21
Clear selection

Warranty Protection

Repair Service Available

OEM
Spare Parts

FRD-23R Series - Heavy Duty Reversible Drills Models Comparison

Model

FRD-23R-21

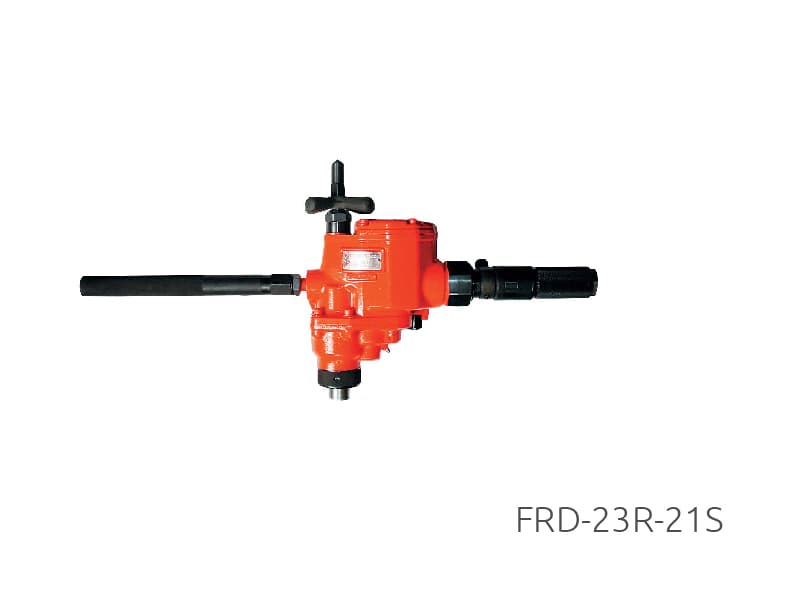

FRD-23R-21S

FRD-23R-22

FRD-23R-22S

Part Number

5412053274

5412053276

5412053277

5412053280

Drilling Capacity

22mm / 7/8"

22mm / 7/8"

22mm / 7/8"

22mm / 7/8"

Speed (RPM's)

480

480

480

480

Power

880 W

880 W

880 W

880 W

Weight

16.1 lbs / 7.3 kgs

15.4 lbs / 7 kg

15.4 lbs / 7 kg

15.4 lbs / 7 kg

Spindle or Chuck type

M.T. 2

M.T. 3

M.T. 3

M.T. 3

Sound Pressure db(A)

97.7 db(A)

97.7 db(A)

97.7 db(A)

97.7 db(A)

FUJI Air Tools Pneumatic Drill Features

heavy-duty

Industrial Heavy-Duty

Aluminum housing makes it durable and lightweight.

low vibration

Low Vibration

Expertly built to reduce vibration in the harshest operation.

Cost effective

Cost Effective

More durability means greater ROI compared to lower-end tools.

self-return-roll-handle

Self Return Roll Handle

When the operator releases the handle, it automatically returns to the "OFF" position and the air supply is switched off. When ordering, add "S" to the end of the model name.

reversible

Reversible

Fuji offers a reversible option for some heavy duty drill models. The reverse action is selected by simply turning the reverse lever.

dead-handle

Dead Handle

The dead handle helps soften the breakthrough reaction force experienced when drilling through holes.

rear-exhaust-muffler

Rear Exhaust with Built-in Muffler

The noise level is minimized via the muffler built into the exhaust cover.

swivel-type-exhaust

Swivel Type Exhaust Cover

The exhaust cover can be rotated to enable the operator to choose a convenient direction of the exhaust air.

two-stage-throttle

Two-State Throttle Action

This mechanism allows slow start smooth operation to full speed allowing the drill bit to be centralized prior  to drilling at full speed.

jacobs

Jacobs Tapered Models with Yukiwa Chuck

Fuji offers special models with Jacobs tapered spindles and chucks for very precise drilling application. Especially FRD-6PH series provides run-out (0.02mm for FRD-6PH-2 & 3, 0.06mm for FRD-6PH-5 & 7). For more versatile applications the series provides 3/8"-24 spindles models (FRD-6PH TH).
